CUSTOM AR-15 UPPER RECEIVERS and Complete upper assemblies

 Our Stage 1 upper receivers start from a 7075-T6 Aluminum Cerra Forge part. This is a standard mil-spec flat top M4 upper receiver with engraved T markings. We machine the Pic rail to take some weight out of the upper and add our company logo. Then we hardcoat anodize and PTFE coat the upper to aid bolt carrier to upper receiver break in. We add V Seven parts to complete the assembly for a tidy 8.5 ounces. We use the V Seven Titanium barrel nut, the V Seven Aluminum port door and hinge and the V Seven Aluminum forward assist. High quailty V Seven parts are used in all of our builds, they make great parts.

 SPORTER- Complete upper assemblies are available now from ICGW. We use our Stage 1 upper receiver with V Seven parts and add a medium latch BCM charging handle along with a lightweight Spikes BCG. Then we add our 12 3/8" Sporter handguard, a Faxon 14.5" Gunner barrel, an SLR .625" adjustable Titanium Gas block and Spikes Melonite mid length gas tube. Last we pin and weld a Primary Weapons System FSC556 Mod 2 muzzle brake to the Faxon barrel for a legal 16" barrel length. The complete upper weighs just over 3 lbs, very light, maneuverable and accurate.

COMPETITION- We also have a Competition version that uses either our  15" Competition Handguard with a 16" barrel (18" if you require) or  our 13.5" Competition Handgaurd with a 14.5" barrel with pinned and welded comp. We use our lightweight hardcoated full PTFE coated upper receiver, a Cryptic Coatings Lightweight BCG in Mystic Black and a Next Level Ambi charge handle. The Bolts are purchased in different sizes so we can custom fit them to your barrel chamber.

10/8/18- AVAILABLE NOW- We have one Lightweight Competition Upper Assembly available with a 14.5” Black Hole .223 Wylde Pencil Barrel. PWS FSC556 Mod 2 Comp pinned and welded to the barrel. The .223 Wylde chamber and the three land polygonal rifling offer great accuracy and at 3lbs 2oz it is very maneuverable. The Isler Custom Gun Works 13.5” Competition Handguard is right at 7.0 oz so the front of the upper is very light. For more details see the description below dated 9/27/18


9/27/18- AVAILABLE NOW- We have two complete matching Lightweight Competition upper assemblies. these come in at just under 3lbs 2oz. 16” .223/5.56 Faxon Match Series barrel, .223 Wylde Chamber and 1x8 Twist. Venom Titanium Comp, SLR Titanium Gas Block with Spikes Mid Length Gas Tube. Isler Custom Gun Works 7.7 oz 15” Carbon Fiber M-Lok Competition Handguard and Lightweight Upper Receiver. Cryptic Coatings Lightweight Bolt Carrier Group in Mystic Black with a Next Level Ambi Charging Handle. V Seven Aluminum Port Door, Aluminum Hinge Pin and Diamond Pattern Aluminum Forward assist. All Bolts are custom fit to the chamber so brass comes out at +.002”/.003” for improved accuracy and reliable feeding. Every barrel has two detents drilled for the gas block set screws so that there is no chance the gas block can rotate. These upper assemblies will be fired several times to check upper function and begin the barrel break in phase. We suggest you complete the process based on barrel manufacturers recommendation.

10/28/18- AVAILABLE NOW- We have one standard weight 14.5” .223 Wylde Black Hole 1x8 Barreled complete upper assembly. This one is not our typical lightweight upper but is long on accuraccy, this assembly weighs in at 3lb 13oz (still lighter than many). Pinned and welded Venom comp, Titanium SLR adjustable Gas block, Isler Custom Gun Works Competition Carbon Fiber handguard and Lightweight Upper Receiver. Lightweight Cryptic Coatings bolt carrier in Cryptic Black with custom fit to chamber Fail Zero NiB bolt and TacLatch ambi charge handle. V Seven Aluminum port door, aluminum hinge pin and alum Diamond pattern forward assist.

2019- COMING SOON- BLACK HOLE BARRELED .308 WIN COMPLETE LIGHTWEIGHT UPPER ASSEMBLIES!!!







Lightweight ICGW Upper receiver Hardcoated and 100% PTFE coating and V Seven parts. The Barrel nut can be deleted if desired

Lightweight ICGW Upper receiver Hardcoated and 100% PTFE coating and V Seven parts. The Barrel nut can be deleted if desired

Sporter AR15 .223/5.56 Upper Assembly

Sporter AR15 .223/5.56 Upper Assembly

10/8/18- One 14.5” Black Hole .223 Wylde complete upper assembly at 3lb 2oz available now

10/8/18- One 14.5” Black Hole .223 Wylde complete upper assembly at 3lb 2oz available now

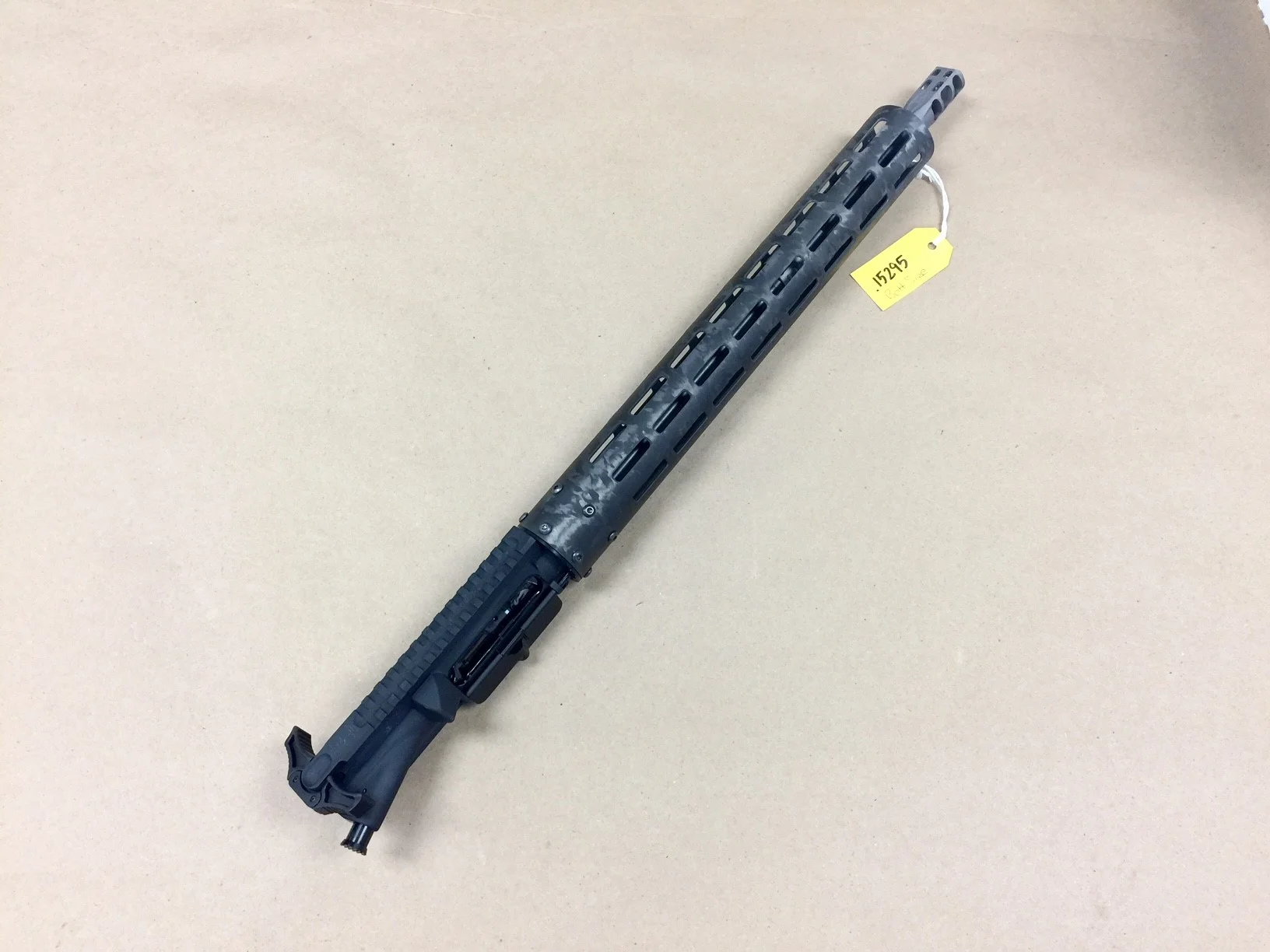

9/27/18- Two 16” Faxon Match series complete upper assemblies ready for sale. See description to the left.

9/27/18- Two 16” Faxon Match series complete upper assemblies ready for sale. See description to the left.

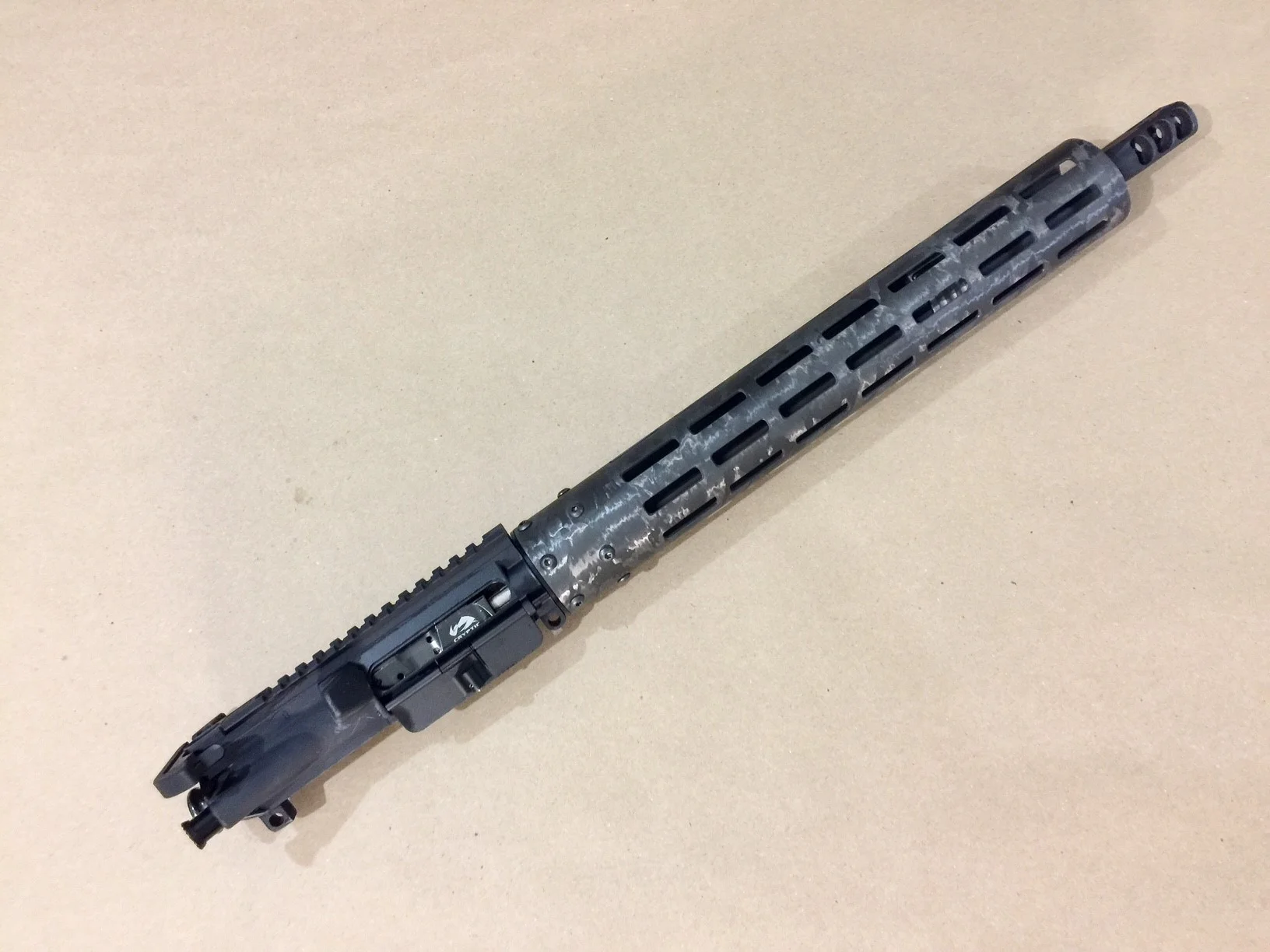

10/28/18- Std Black Hole barreled upper assembly for sale. See description to the left.

10/28/18- Std Black Hole barreled upper assembly for sale. See description to the left.
