If you purchase any of our Handguards and you have an issue please contact us so we can resolve the issue. If we cannot resolve the issue we will send a return ship label and once the Handguard returns and we inspect for any damage we will refund your $ 100%. Thank you, Mark Isler

the ar-15 Sporter Carbon Fiber Handguard



AR-15 12 3/8" Sporter Model Handguard

AR-15 12 3/8" Sporter Model Handguard

Our AR-15 Sporter Model Handguard is made from Aerospace quality filament wound carbon fiber. The handguards are available in 7.25"pistol length, 9" Carbine Length, 10.5" Mid Length, 12.375" Rifle Length and 15" Length.
The handguards have vents for barrel cooling that are CNC machined the length of the tube at 2, 4, 8 and 10 O'clock. The bottom of the tube is machined in the M-Lok pattern the entire length of the tube for your angled hand stops and bi-pod mounts or other accessories. There is an enlarged port at the Mid length gas land area for easy access for side adjust gas blocks (the 7.25" pistol length has enlarged port at the pistol length gas land).

NOTE: All but the 9" Carbine version and shorter lengths are machined on top to accept optional 1.875 long pic rail section for front sight. The machining can be added if desired.

The handguard is 2.000" O.D. and 1.840'' I.D. The .080" wall thickness that gives excellent stiffness even at 15" long.

The handguard mount is made from 7075 Aluminum and is Black hardcoated. All threads are form tapped for strength and cracking resistance. The fasteners are supplied and are quality Torx Plus button head design. The Torx Plus wrenches are also included in the kit.

                                                                       7.25" Pistol              105 grams/3.7 ounces
                                                                       9" Carbine               133 grams/4.7 ounces
                                                                      10.5"  Mid                151 grams/5.3 ounces
                                                                      12.375" Rifle            164 grams/5.8 ounces
                                                                      15" Rifle                   192 grams/6.8 ounces

Custom lengths are available for an additional  $30 engineering  fee for vent and M-Lok spacing on the desired custom length. Additional time will be required also to complete and no time frame could be guaranteed.  Custom handguards must be paid for in advance before processing. Price depends on length of tube and number of cuts.



AVAILABLE NOW- The AR15/ar9 Competition Carbon Fiber Handguard for 3 gun and pcc Competitors



AR15/AR9 Competition Handguard kits. Shown here is a 13.5" and 15" version with 7075 barrel nut and supplied barrel nut wrench.

AR15/AR9 Competition Handguard kits. Shown here is a 13.5" and 15" version with 7075 barrel nut and supplied barrel nut wrench.

The Competition Model is designed to employ any number of M-Lok style attachments. M-Lok design is machined into the handguard every 45 degrees for the entire length of the handguard assuring that any M-Lok hand stop or barrier stop can be located where you desire. The M-Lok design aslo offers great grip.
This design utilizes a 7075 Aluminum barrel nut that incorporates the handguard mount. It is lightened to minimal weight (75 gr) and still maintains strength and superior handguard stiffness. The barrel nut/mount is hardcoated with tapping that is form thread tapped for greater strength. A shim kit is supplied to phase the barrel nut to the proper location for mounting the handguard. A proprietary barrel nut wrench is also supplied for installing and removing the barrel nut/mount.

The handguard is 2.000" O.D. and 1.840'' I.D. The .080" wall thickness and gives extremely good stiffness at any length. The fasteners are supplied and are quality Torx Plus button head design. The Torx Plus wrenches are also included in the kit.

          15" Competition       218 grams/7.7 ounces

          13.5" Competition    199 grams/7.0 ounces

Custom lengths are available for an additional $30 engineering fee for design of the M-Lok spacing on the desired custom length. Additional time will be required also to complete and no time frame could be guaranteed. Custom handgaurds must be paid for in advance before processing. Price depends on length of tube and number of cuts.



12/17/2018- WE HAVE our AR10 LR308 COMPETITION CARBON FIBER HANDGUARD AVAILABLE now.

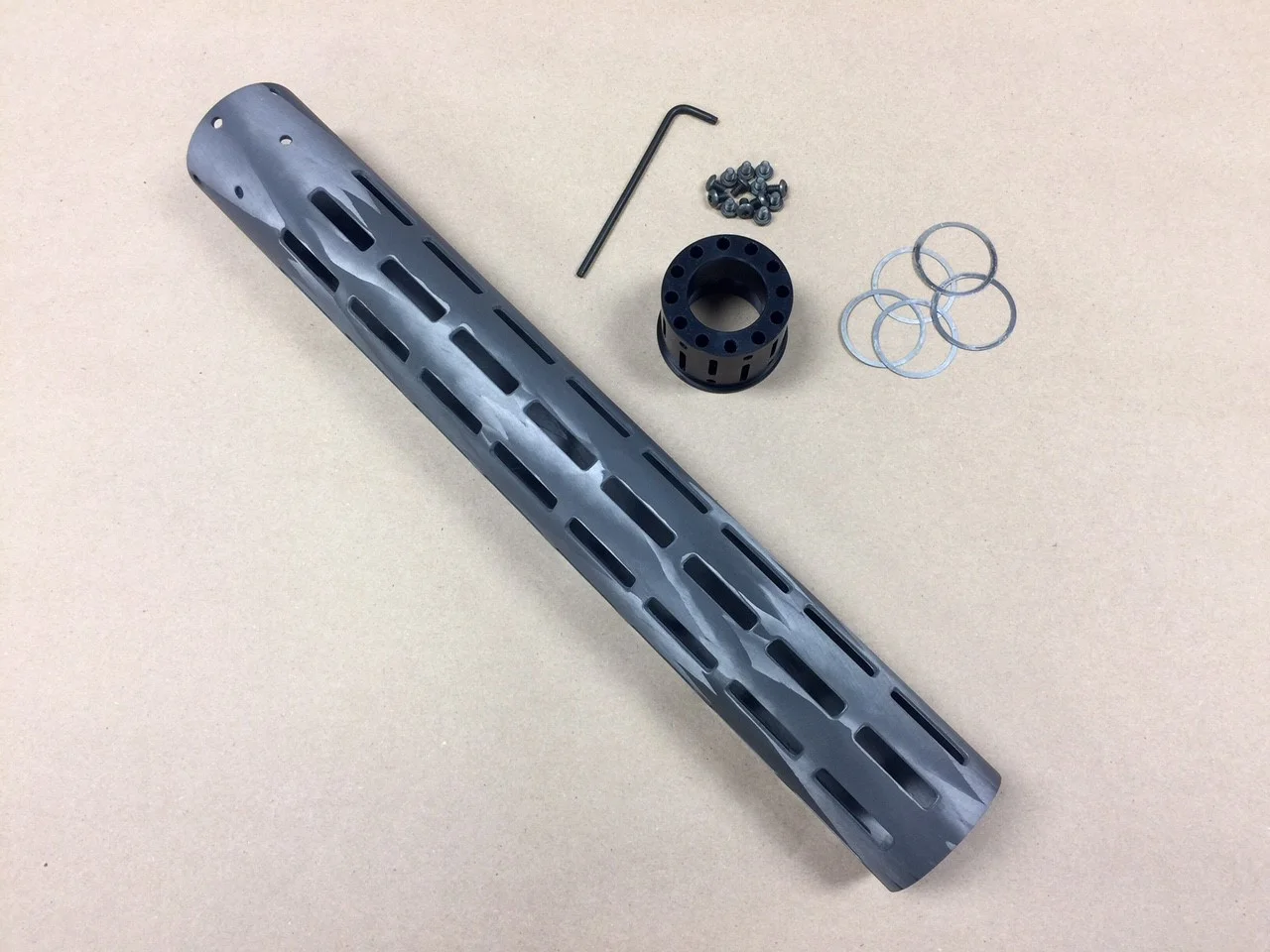

15 AR10 chg 12-2018.jpg

The same design as our AR15/AR9 Competition Handguard . A slightly larger outer diameter like our Sporter model only with 100% M-Lok slots. 2.160" O.D. wit a 2.000" I.D. Bull Barrels with SLR or Superlative Adjustable gas blocks no issue! These will initially be offered in 17", 15" and 13.5". We project the 17" handguard installed to be under 10 oz!

17” Competition 286gr/10.1oz

15” Competition 263gr/9.3oz

13.5” Comoetition 241gr/8.5oz



 The AR10 LR308 Sporter 17" carbon fiber handguard



AR-10 17" Sporter Handguard on a 20" Semi Bull Barrel

AR-10 17" Sporter Handguard on a 20" Semi Bull Barrel

The 17" carbon fiber handguard  is 2.160" OD x 2.000" ID and has vent cuts in four locations and M-Lok on the bottom the entire length to mount your accessories. A shim kit is supplied to phase the barrel nut to the proper location for mounting the hand guard.

          AR-10 17"Sporter          298 grams/10.5 ounces

The handguard is made from filament wound carbon fiber and the venting and M-Lok is CNC machined. The Barrel Nut is CNC machined from 7075 Aluminum and hardcoated.

The handguard mounting threads are formed threads. The shim kit is made from stainless steel. Shims are .001", .003", .005", .007" and .009" for easy phasing of the barrel nut. Recommended torque 55 to 70 ft lb with lube on shoulder and threads. Torx screws and Torx wrench are included.

NOTE: The Barrel Nut installation tool Is NOT included. We would recommend http://www.precisionreflex.com/Detail.aspx?PROD=186609&CAT=4215

Custom lengths are available for an additional $30 engineering fee for design of the vent and M-Lok spacing on the desired custom length. Additional time will be required also to complete and no time frame could be guaranteed. Custom handguards must be paid for in advance before processing. Price depends on length of tube and number of cuts.



competition carbon fiber handguard for mpx

MPX Competition Handguard. Shown here is the 13.5" version.

MPX Competition Handguard. Shown here is the 13.5" version.

The 13.5" MPX carbon fiber handguard, like our other handguards, are made from Aerospace quality carbon fiber. The handguard employs the MPX retention pin for mounting the lower portion of the handguard to the front take down pin. A left and right CNC machined 7075 hardcoated aluminum rail attaches to the carbon fiber tube with fasteners to give a solid mount feel when the handguard is attached to the upper receiver.

The hanguard has M-Lok every 45 Degrees for a positive grip and for your finger and barrier stops. The tube size is the same as our Sporter and Competition models at 2.000"OD x 1.840"ID. Also the round tube has a more natural feel than the production and competitors part.



                 6" Competition          XXX grams/ XXX ounces

                 8" Competition            102 grams/ 3.6 ounces

                 10.25" Competition     112 grams/4.0 ounces

                 12.25" Competititon    134 grams/4.7 ounces

                 13.5" Competition       145 grams/ 5.1 ounces

                  15" Competiton          156 grams/ 5.5 ounces

                  4.5"  Short Barrel         64  grams/ 2.26 ounces

                  4.5"- available only at www.inleadwetrust.com



Custom lengths are available for an additional $30 engineering fee for design of the vent and M-Lok spacing on the desired custom length. Additional time will be required also to complete and no time frame could be guaranteed. Custom handguards must be paid for in advance before processing. Final Price depends on tube length and amount of cuts.

NOTE REGARDING SIG MPX UPPER RECEIVERS-  Not all CNC machined parts are identical. Every part has a machining tolerance. From batch to batch of uppers there may be slight differences. We hand assemble every handguard for the MPX on a GEN 2 upper and it will have a snug fit when it leaves our shop. We have seen issues with rail slots being a little tight a the area under the rail vary slightly. Use a good quality grease on a cue tip in the rail slot of the upper, this will help installation and removal.

DISCLAIMER: “MPX” is a federally registered trademark of SIG SAUER, Inc. and is one of many trademarks owned by SIG SAUER, Inc.
Neither ICGW LLC nor this website are affiliated in any manner with, or otherwise endorsed by, SIG SAUER, Inc.
The use of “MPX” on this page is merely to advertise the sale of MPX type parts, or components, manufactured by ICGW LLC.



WHAT WE CAN DO FOR YOU

Our Custom Shop can install your handguard choice to your upper receiver and make the modifications you desire or ask for our input depending on your application.

ICGW can update your Upper Assembly to what ever you desire. When we install our handguards for our clientele we routinely remove the mil spec A2 front sights and install our ICGW Titanium Adjustable Gas Block or whatever gas block you desire. Barrel removal and installation of upgraded barrels and upgraded muzzle brake installation are routinely performed. And heck, it doesn't have to be our handgurds, it can be whatever make/look you desire!

NOTE: Any barrel changes would require your complete Bolt Carrier Group to check for proper headspace. This may require a new bolt and if you are an accuracy fanatic we have access to Quality NiB bolts in .0005" increments from max to min specs.

CONTACT US WITH ANY QUESTIONS ABOUT UPPER ASSEMBLY IMPROVEMENTS
